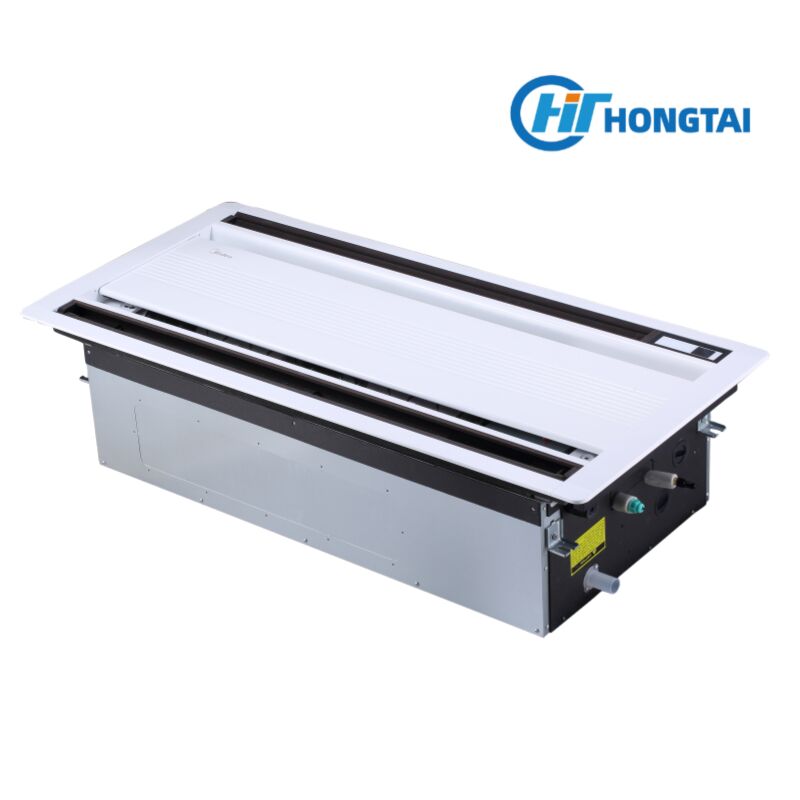

Two-Way Cassette 2.2–7.1 kW Dual Airflow Wide Coverage

Product Details

Place of Origin: China

Brand Name: Hongtai

Certification: CB, ISO

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                2.2–7.1 kW DC inverter VRF cassette, dual airflow wide coverage cassette, two-way cassette air conditioner


Product Name:	Two-Way Cassette	Capacity Range:	2.2 – 7.1 KW (0.7 – 2.4 US Tons)
Power Supply:	220-240V, 50Hz, 1-phase	Sound Pressure Level:	22 – 44 DB(A)
Airflow Rate:	458 – 1200 M³/h	Net Dimensions (W×H×D):	1172 × 299 × 591 Mm
Refrigerant Type:	R410A / R32	Liquid/Gas Pipe:	Φ6.35 / Φ12.7 – Φ9.52 / Φ15.9 Mm

Product Name:	Two-Way Cassette
Capacity Range:	2.2 – 7.1 KW (0.7 – 2.4 US Tons)
Power Supply:	220-240V, 50Hz, 1-phase
Sound Pressure Level:	22 – 44 DB(A)
Airflow Rate:	458 – 1200 M³/h
Net Dimensions (W×H×D):	1172 × 299 × 591 Mm
Refrigerant Type:	R410A / R32
Liquid/Gas Pipe:	Φ6.35 / Φ12.7 – Φ9.52 / Φ15.9 Mm

Two-Way Cassette 2.2–7.1 kW Dual Airflow Wide Coverage

Product Overview

The Two-Way Cassette features a bidirectional airflow design that provides wide, even air distribution across larger spaces. This ceiling-concealed unit is perfect for commercial applications where consistent temperature control is essential, such as open-plan offices, retail environments, and conference halls. The dual-direction discharge ensures that conditioned air reaches all corners of the room efficiently.

The unit incorporates advanced DC water pump monitoring technology that actively tracks pump speed and water flow, issuing real-time alerts if leakages, jamming, or other anomalies are detected. This proactive monitoring ensures reliable operation and prevents potential water damage to property.

With a 5-step louver control and auto swing mode, the Two-Way Cassette offers precise airflow direction adjustment with an air supply angle range of 35° to 65°. The high-lift drain pump with 1200mm raised height simplifies installation in challenging ceiling configurations.

Key Features & Benefits

Bidirectional Airflow: Dual-direction discharge provides wide, even air distribution for larger spaces
Digital DC Water Pump Monitor: Active monitoring of pump speed and water flow with real-time anomaly alerts
Multi-Step Vertical Swing: 5-step louver control with 35°-65° air supply angle for precise airflow direction
High-Lift Drain Pump: 1200mm raised height drain pump enables flexible installation options
Ultra-Slim Body: Compact design with low profile suitable for various ceiling configurations
Auto Cooling/Heating Changeover: Automatic mode switching based on temperature requirements
Quiet Operation: Low noise levels down to 22dB(A) for comfortable indoor environments

Recommended Applications

Open-Plan Offices - Large office spaces requiring uniform climate control

Conference Halls - Meeting rooms with variable occupancy and airflow needs

Retail Showrooms - Large retail spaces with continuous customer traffic

Educational Institutions - Classrooms and lecture halls

Commercial Buildings - Reception areas and common spaces

Certifications & Standards

Eurovent Certified Performance

CE Compliance (EU Safety Standards)

RoHS Compliant

ISO 9001:2015 Quality Management

ErP Directive Compliant

Technical Specifications

Parameter	Specification
Capacity Range	2.2 - 7.1 kW (0.7 - 2.4 US Tons)
Power Supply	220-240V, 50Hz, 1-phase
Sound Pressure Level	22 - 44 dB(A)
Airflow Rate	458 - 1200 m³/h
Net Dimensions (W×H×D)	1172 × 299 × 591 mm
Refrigerant Type	R410A / R32
Liquid/Gas Pipe	Φ6.35 / Φ12.7 - Φ9.52 / Φ15.9 mm
