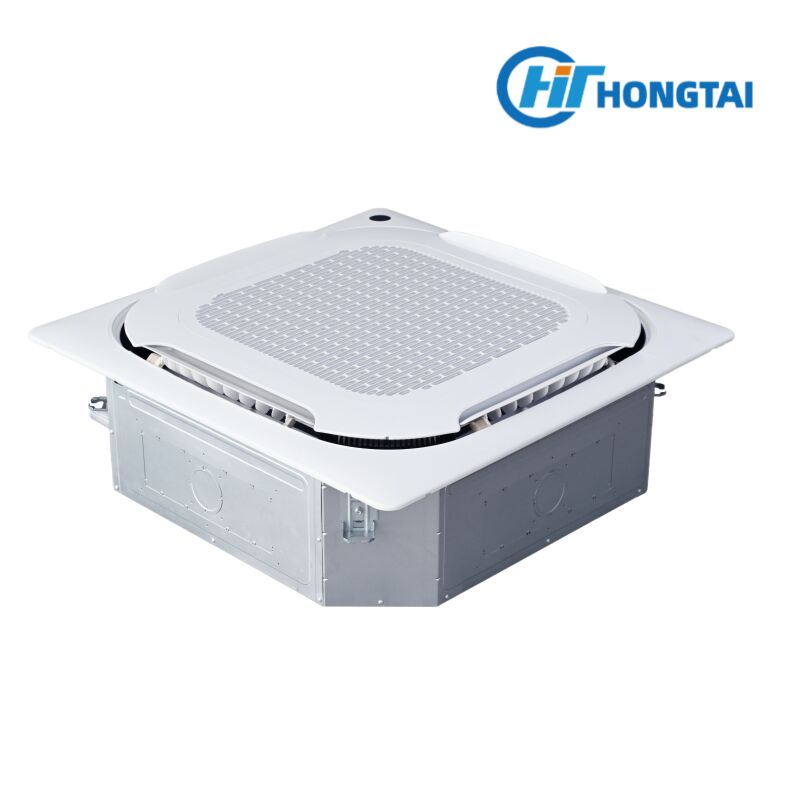

Four-Way Cassette 2.8–18.0 kW Premium 360° Airflow High Capacity

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Hongtai
Certification
CB, ISO
Product Name:
Four-Way Cassette
Capacity Range:
2.8 – 18.0 KW (1.0 – 6.1 US Tons)
Power Supply:
220-240V, 50Hz, 1-phase
Sound Pressure Level:
25 – 50 DB(A)
Airflow Rate:
492 – 2300 M³/h
Net Dimensions (W×H×D):
840–1050 × 204–300 × 840–1050 Mm
Refrigerant Type:
R410A / R32
External Static Pressure:
50 Pa
Highlight:

Four-Way Cassette DC Inverter VRF

,

High Capacity 360° Airflow Cassette

,

2.8–18.0 kW Premium VRF System

Product Description
Four-Way Cassette 2.8–18.0 kW Premium 360° Airflow High Capacity
The Four-Way Cassette represents the premium solution for large-space climate control, offering powerful cooling and heating capacity combined with sophisticated 360° airflow technology. Designed for commercial environments such as shopping malls, hotel lobbies, and large office spaces, this unit delivers exceptional performance while maintaining elegant aesthetics.
The advanced 360° round air discharge system ensures perfectly uniform temperature distribution throughout the entire room, eliminating hot and cold spots that are common with conventional units. The unit offers an impressive airflow angle range from 30° to 65° with 5-step louver control and automatic swing mode to meet diverse customer requirements.
With external static pressure of 50Pa, the Four-Way Cassette is capable of delivering effective airflow in spaces with floor heights up to 4.5m. The high-lift drain pump, water-level switch, and air baffle fittings for irregular rooms provide comprehensive installation flexibility for any ceiling configuration.
Key Features & Benefits
  • 360° Uniform Airflow: Premium round discharge design eliminates hot/cold spots with even temperature distribution
  • High Capacity Range: Up to 18.0 kW capacity for large commercial spaces and open-plan areas
  • Long-Distance Air Delivery: 50Pa static pressure capable of reaching spaces with 4.5m floor height
  • Human Detect Sensor: Smart radar sensor detects occupancy and optimizes temperature accordingly
  • Dual-Thermistor Control: Temperature monitoring from both wired controller and indoor unit
  • Air Baffle Fittings: Customizable airflow for irregular rooms by blocking specific discharge ports
  • Silver-Ion Coated Drain Pan: Keeps drain pan mold-free with slow release of silver ions
Recommended Applications
Shopping Malls
Hotel Lobbies
Conference Centers
Airport Terminals
Exhibition Halls
Certifications & Standards
Eurovent Certified Performance
CE Compliance (EU Safety Standards)
RoHS Compliant
ISO 9001:2015 Quality Management
ErP Directive Compliant (Energy Labeling)
Technical Specifications
Parameter Specification
Capacity Range 2.8 - 18.0 kW (1.0 - 6.1 US Tons)
Power Supply 220-240V, 50Hz, 1-phase
Sound Pressure Level 25 - 50 dB(A)
Airflow Rate 492 - 2300 m³/h
Net Dimensions (W×H×D) 840-1050 × 204-300 × 840-1050 mm
Refrigerant Type R410A / R32
External Static Pressure 50 Pa
Product Images
Four-Way Cassette unit installation view showing 360° airflow design Close-up view of Four-Way Cassette showing premium finish and construction Technical diagram of Four-Way Cassette airflow system and components
