Arc Duct 1.5–11.2 kW Heat Exchanger Ultra-Slim

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Hongtai
Certification
CB, ISO
Product Name:
Arc Duct
Capacity Range:
1.5 – 11.2 KW (0.5 – 3.8 US Tons)
Power Supply:
220-240V, 50Hz, 1-phase
Sound Pressure Level:
22 – 40 DB(A)
Airflow Rate:
295 – 1620 M³/h
Net Dimensions (W×H×D):
550–1600 × 199 × 450 Mm
Refrigerant Type:
R410A / R32
External Static Pressure:
10 – 80 Pa
Highlight:

Ultra-Slim DC Inverter VRF

,

1.5–11.2 kW Heat Exchanger

,

Arc Duct Heat Exchanger

Product Description
Arc Duct 1.5–11.2 kW Heat Exchanger - Ultra-Slim
The Arc Duct represents an innovative approach to concealed air conditioning, featuring an integrated heat exchanger that facilitates rapid drainage without accumulating dust or ash. This revolutionary design significantly improves air supply quality and promotes a healthier indoor environment, making it ideal for applications where air purity is paramount.
With an ultra-slim profile of just 199mm height across all models, the Arc Duct series is specifically designed for installation in narrow spaces where traditional ducted units would not fit. Despite its compact dimensions, the unit delivers powerful cooling and heating performance with external static pressure capabilities of 10-80Pa.
The optional long-life filter, medium-life filter, and plasma sterilization module further enhance air supply quality. The high-lift drain pump with 1200mm raised height and drain-pump fault alert system ensure reliable operation and easy maintenance.
Features & Benefits
  • Heat Exchanger: Revolutionary design for fast drainage without dust adhesion, improving air quality
  • Ultra-Slim Design: Only 199mm height across all models - ideal for narrow ceiling spaces
  • Plasma Sterilization Module: Optional module effectively kills bacteria, viruses, and removes odors
  • Constant Airflow Technology: Fan technology maintains consistent air volume despite duct resistance
  • High-Lift Drain Pump: 1200mm raised height with fault alert for reliable condensation removal
  • Silver-Ion Coated Drain Pan: Protects and prevents the growth of mold and bacteria
  • Flexible Static Pressure: 10-80Pa external static pressure range adapts to various duct configurations
Applications
  • Laboratories - Clean environments requiring dust-free, sterile air supply
  • Medical Facilities - Clinics and healthcare spaces with hygiene requirements
  • Restaurants - Commercial kitchens with heat extraction needs
  • Libraries - Quiet spaces with discreet climate control requirements
  • Narrow Corridors - Hallways and passages with limited ceiling space
Certifications & Standards
  • Eurovent Certified Performance
  • CE Compliance (EU Safety Standards)
  • RoHS Compliant
  • ISO 9001:2015 Quality Management
  • Plasma Technology Safety Certified
Technical Specifications
Parameter Specification
Capacity Range 1.5 - 11.2 kW (0.5 - 3.8 US Tons)
Power Supply 220-240V, 50Hz, 1-phase
Sound Pressure Level 22 - 40 dB(A)
Airflow Rate 295 - 1620 m³/h
Net Dimensions (W×H×D) 550-1600 × 199 × 450 mm
Refrigerant Type R410A / R32
External Static Pressure 10 - 80 Pa

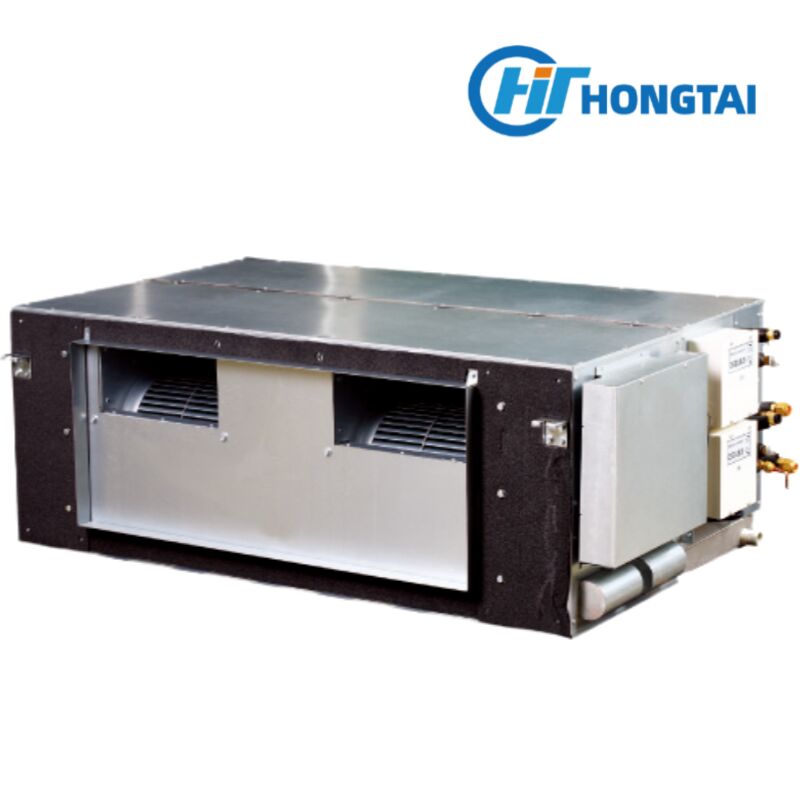

Arc Duct heat exchanger unit installation view showing ultra-slim profile Close-up view of Arc Duct internal components and heat exchanger design
