Wall-Mounted Units Premium Indoor Comfort with Elegant Wall-Mounted Design

Product Details

Place of Origin: China

Brand Name: Hongtai

Certification: CB, ISO

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                wall-mounted DC inverter VRF unit, premium indoor comfort VRF system, elegant wall-mounted air conditioning unit


Product Name:	Wall-Mounted Units	Capacity Range:	1.5 - 8.0 KW (5.1 - 27.3 KBtu/h)
Power Supply:	1-phase, 220-240V, 50Hz	Cooling Capacity:	1.5 - 8.0 KW
Heating Capacity:	1.7 - 9.0 KW	Sound Pressure Level:	27 - 45 DB(A)
Sound Power Level:	40 - 60 DB(A)	Airflow Rate:	340 - 1380 M³/h (7 Speeds)
Net Dimensions (W×H×D):	750-1200×295×265 Mm	Refrigerant Type:	R410A / R32

Product Name:	Wall-Mounted Units
Capacity Range:	1.5 - 8.0 KW (5.1 - 27.3 KBtu/h)
Power Supply:	1-phase, 220-240V, 50Hz
Cooling Capacity:	1.5 - 8.0 KW
Heating Capacity:	1.7 - 9.0 KW
Sound Pressure Level:	27 - 45 DB(A)
Sound Power Level:	40 - 60 DB(A)
Airflow Rate:	340 - 1380 M³/h (7 Speeds)
Net Dimensions (W×H×D):	750-1200×295×265 Mm
Refrigerant Type:	R410A / R32

Wall-Mounted Units Premium Indoor Comfort with Elegant Wall-Mounted Design

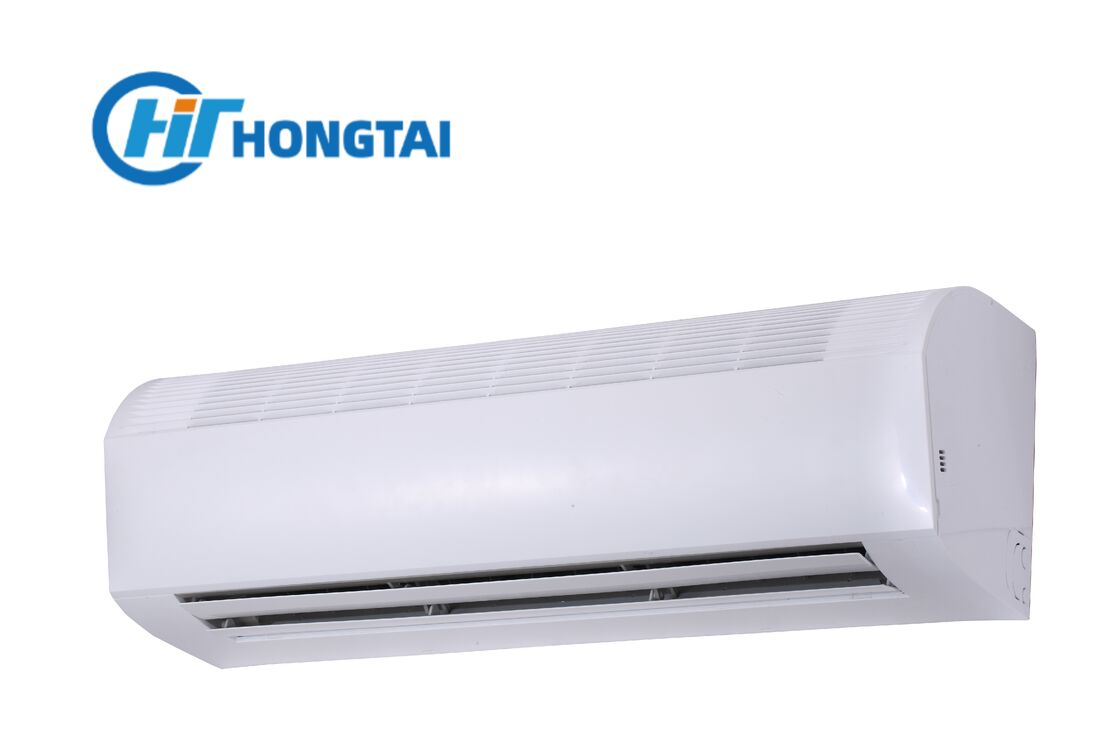

Wall-Mounted Units: Premium Indoor Comfort with Elegant Design

The V8 Wall-Mounted Units represent the pinnacle of residential and light commercial air conditioning design. Combining whisper-quiet operation with powerful climate control, these units deliver exceptional comfort while seamlessly integrating into any interior decor. The ultra-compact design allows for installation close to the ceiling, maximizing floor space while ensuring optimal air distribution throughout the room.

Key Features & Benefits

Capacity Range: 1.8 - 7.1 kW (covering rooms from small bedrooms to large living spaces)
Ultra-Quiet Operation: Sound levels as low as 27 dB(A) for peaceful environments
3D Airflow: Vertical and horizontal swing for uniform temperature distribution
Bi-directional Coanda Airflow: Cold air does not blow directly on occupants; hot air warms evenly from floor level
Human Detect Sensor (Optional): Millimeter-wave radar automatically adjusts temperature based on room occupancy
Ceiling-Adjacent Mounting: Unit positioned just 3cm from ceiling for spacious room feel
Multi-directional Drainage: Flexible condensate discharge options (upward, downward, or horizontal)
High-Lift Drain Pump (Optional): 1200mm raised height for versatile installation
Enclosed Components: Fully-enclosed throttle parts and drain pumps ensure whisper-quiet operation
Auto Cooling/Heating Changeover: Automatic mode switching for efficient temperature control
Sleep Mode: Smart temperature adjustment throughout the night for comfortable rest
Digital Display On/Off: Display can be deactivated for darker sleeping environment

Ideal Applications

Residential bedrooms and living rooms requiring quiet operation

Hotel rooms and guest accommodations

Small to medium-sized offices

Medical clinics and healthcare facilities

Libraries and study rooms

Baby nurseries and children's rooms

Certifications & Standards

ISO 9001:2015 Quality Management System

ISO 14001:2015 Environmental Management System

CE Certification for European Market

ERP Directive Compliance

RoHS Compliant

IEC 60335 Safety Standards

Technical Specifications

Parameter	Specification
Model Series	MIH-GN18
Capacity Range	1.5 - 8.0 kW (5.1 - 27.3 kBtu/h)
Power Supply	1-phase, 220-240V, 50Hz
Cooling Capacity	1.5 - 8.0 kW
Heating Capacity	1.7 - 9.0 kW
Airflow Rate	340 - 1380 m³/h (7 speeds)
Sound Pressure Level	27 - 45 dB(A)
Sound Power Level	40 - 60 dB(A)
Net Dimensions (W×H×D)	750-1200×295×265 mm
Net Weight	9 - 15 kg
Refrigerant Type	R410A/R32
Liquid/Gas Pipe	Φ6.35/Φ12.7 mm or Φ9.52/Φ15.9 mm
Drain Pipe	OD Φ16 mm

Product Images
