One-Way Cassette Compact Ceiling Cassette for Hotel Rooms Low Noise 22dB

Product Details

Place of Origin: China

Brand Name: Hongtai，Midea

Certification: CB, ISO

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                compact ceiling cassette for hotel rooms, low noise ceiling cassette 22dB, DC inverter VRF ceiling cassette


Product Name:	One-Way Cassette	Capacity Range:	1.8 - 7.1 KW (0.6 - 2.4 US Tons)
Power Supply:	220-240V, 50Hz, 1-phase	Sound Pressure Level:	22 - 45 DB(A)
Airflow Rate:	300 - 1050 M³/h	Net Dimensions (W×H×D):	700-1200 × 130-150 × 425 Mm
Refrigerant Type:	R410A / R32	Liquid/Gas Pipe:	Φ6.35 / Φ12.7 Mm

Product Name:	One-Way Cassette
Capacity Range:	1.8 - 7.1 KW (0.6 - 2.4 US Tons)
Power Supply:	220-240V, 50Hz, 1-phase
Sound Pressure Level:	22 - 45 DB(A)
Airflow Rate:	300 - 1050 M³/h
Net Dimensions (W×H×D):	700-1200 × 130-150 × 425 Mm
Refrigerant Type:	R410A / R32
Liquid/Gas Pipe:	Φ6.35 / Φ12.7 Mm

One-Way Cassette Compact Ceiling Cassette for Hotel Rooms Low Noise 22dB

One-Way Cassette Compact Ceiling Cassette for Hotel Rooms - Low Noise 22dB

The One-Way Cassette is an elegant and compact ceiling-concealed unit designed for spaces with limited ceiling height. With an ultra-slim body height of just 130mm, this unit fits seamlessly into tight ceiling spaces, making it ideal for modern offices, hotel rooms, and residential applications. The single-direction airflow design ensures efficient climate control while maintaining a clean, unobtrusive appearance.

Equipped with advanced DC inverter technology, the One-Way Cassette delivers precise temperature control with energy-efficient operation. The redesigned fan motor, air duct, and heat exchanger achieve whisper-quiet operation as low as 22dB(A), ensuring a tranquil indoor environment without compromising on cooling or heating performance.

The unit features intelligent comfort functions including automatic anti-condensation mode that detects operating conditions and adjusts the outlet angle of the guide vane to prevent condensation. With 0.5°C/1°C increment temperature adjustment, users can fine-tune their comfort settings with exceptional precision.

Key Features & Benefits

Ultra-Slim Design: Body height of only 130mm, the most compact cassette design available, suitable for limited ceiling spaces
Whisper-Quiet Operation: Noise levels as low as 22dB(A) through redesigned fan motor, air duct, and heat exchanger
Automatic Anti-Condensation: Smart detection system adjusts guide vane angle to prevent condensation on unit surfaces
Digital Display On/Off: Indoor unit displays can be deactivated at night for a darker, sleep-friendly environment
High-Lift Drain Pump: 1200mm raised height drain pump simplifies installation and ensures efficient condensation removal
Auto Cooling/Heating Changeover: Automatically switches between cooling and heating modes to reach set temperature efficiently
Home Leave Mode: Maintains energy-saving indoor temperature during prolonged absences

Recommended Applications

Office Buildings – Individual offices and meeting rooms requiring discrete climate control

Hotel Rooms – Space-efficient cooling/heating with quiet operation for guest comfort

Residential Apartments – Bedrooms and living spaces with limited ceiling height

Retail Shops – Boutique stores and small retail spaces with aesthetic requirements

Healthcare Facilities – Patient rooms requiring precise temperature and quiet operation

Certifications & Standards

Eurovent Certified Performance

CE Compliance (EU Safety Standards)

RoHS Compliant

ISO 9001:2015 Quality Management

ISO 14001:2015 Environmental Management

Technical Specifications

Capacity Range	1.8 - 7.1 kW (0.6 - 2.4 US Tons)
Power Supply	220-240V, 50Hz, 1-phase
Sound Pressure Level	22 - 45 dB(A)
Airflow Rate	300 - 1050 m³/h
Net Dimensions (W × H × D)	700-1200 × 130-150 × 425 mm
Refrigerant Type	R410A / R32
Liquid/Gas Pipe	Φ6.35 / Φ12.7 mm

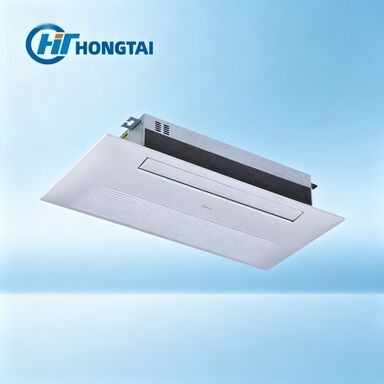

Product Images
