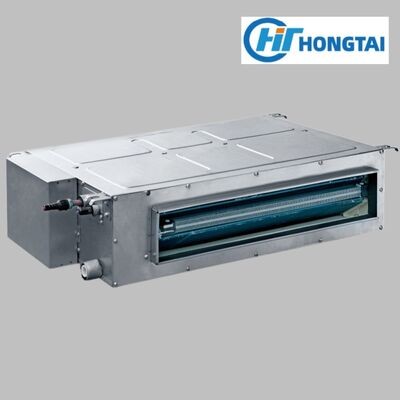

V8 Arc Duct Compact Ducted Unit for Hotel Residential Low Noise Operation

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Hongtai，Midea
Certification
CB, ISO
Product Name:
Arc Duct Indoor Unit
Capacity Range:
1.5 - 11.2 KW (5.1 - 38.2 KBtu/h)
Power Supply:
1-phase, 220-240V, 50Hz
Cooling Capacity:
1.5 - 11.2 KW
Heating Capacity:
1.7 - 12.5 KW
Airflow Rate:
420 - 1700 M³/h (7 Speeds)
Sound Pressure Level:
24 - 42 DB(A)
Refrigerant:
R410A/R32
Net Dimensions (W×H×D):
880-1150×199×450 Mm
Highlight:

V8 Arc Duct compact ducted unit

,

low noise ducted unit for hotels

,

DC inverter VRF residential unit

Product Description
V8 Arc Duct Compact Ducted Unit for Hotel Residential Low Noise Operation
Slim by Design, Powerful by Nature: The Art of Invisible Comfort.
Product Overview
The Arc Duct represents the pinnacle of slim hidden cassette design. At just 199mm depth, this unit is engineered for installation flexibility where conventional ducted units simply won't fit. The revolutionary C-type heat exchanger design maximizes efficiency within the compact form factor, delivering powerful performance that defies its slim appearance.
The concealed installation creates a clean, unobtrusive aesthetic that preserves architectural intent while delivering whisper-quiet comfort. Unlike exposed units that can clash with interior design, the Arc Duct disappears into the ceiling, leaving only perfectly controlled airflow.
The C-type heat exchanger isn't just about compactness—it's about efficiency. The innovative design provides 15% more heat exchange area than conventional designs, improving both cooling and heating performance while maintaining the slim profile that makes installation possible in space-constrained applications.
Key Features
  • Ultra-Slim 199mm Design — Installation flexibility for ceiling spaces where conventional ducted units cannot fit, ideal for renovated buildings and spaces with limited vertical clearance
  • C-Type Heat Exchanger — Compact efficiency with 15% more heat exchange area than conventional designs, improving cooling and heating performance while reducing refrigerant requirements
  • Concealed Installation — Clean aesthetic that preserves architectural intent with only discreet supply and return air grilles visible
  • DC Fan Motor — Silent power with precise speed control for optimal airflow and whisper-quiet operation
Applications
  • Renovated Buildings — Installation where conventional units won't fit
  • Historic Properties — Minimal ceiling intrusion for preservation requirements
  • Narrow Ceiling Spaces — 199mm depth solves space constraints
  • Luxury Retail — Clean aesthetic for high-end boutiques
  • Executive Offices — Discreet comfort without visual distraction
  • Residential Apartments — Invisible comfort that preserves interior design
Certifications & Standards
  • ISO 9001:2015 — Quality Management System
  • ISO 14001:2015 — Environmental Management System
  • CE Certification — European market compliance
  • ERP Directive — Energy efficiency requirements
  • RoHS Compliant — Hazardous substances restriction
  • IEC 60335 — Safety standards compliance
Technical Specifications
Parameter Specification
Capacity Range 1.5 - 11.2 kW (5.1 - 38.2 kBtu/h)
Power Supply 1-phase, 220-240V, 50Hz
Cooling Capacity 1.5 - 11.2 kW
Heating Capacity 1.7 - 12.5 kW
Airflow Rate 420 - 1700 m³/h (7 speeds)
Sound Pressure Level 24 - 42 dB(A)
Unit Depth 199 mm (ultra-slim)
Net Dimensions (W×H×D) 880-1150×199×450 mm
Refrigerant Type R410A/R32
V8 Arc Duct Compact Ducted Unit installation and design features
V8 Arc Duct Compact Ducted Unit technical specifications and components
