Midea VC Max Top-Discharge Cooling-Only VRF System
Redefining Simplicity in Commercial Cooling
Purpose-built for mid-rise buildings that require performance without complexity. When a building's requirements center exclusively on cooling, paying for heat pump capability is inefficient. The VC Max Series (8-30 HP single module, 32-90 HP multi-module combination) eliminates this inefficiency entirely.
By removing reversing valves and heat recovery piping from the design, the system reduces total component count, shortens service procedures, and cuts upfront investment—all while maintaining the intelligent controls that define the V8 platform.
At the core sits META 2.0, a triple-variable algorithm that continuously balances refrigerant distribution, thermal setpoints, and fan speeds—delivering 28%+ annual energy improvement compared to traditional control strategies.
Two power configurations cover global electrification standards: Standard Version (380-415V/50(60)Hz) for international markets, and Latin America Version (220V/60Hz) tailored to regional grid specifications—both connecting directly to site power without external step-down transformers.
Cooling performance remains stable across -15°C to 55°C ambient—the broadest cooling envelope in its class—backed by compatibility with 12 indoor unit form factors and 100+ model variants.
Core Technology Highlights
HyperLink 2,000m: Universal Topology Communication
An in-house communication bus IC enables daisy chain, tree, star, and ring network architectures—far beyond the daisy-chain-only limitation of conventional systems. Proprietary waveform regeneration delivers exceptional noise immunity, preserving data integrity across electrically noisy building environments. Coupled with 1,100m maximum piping runs and 110m maximum elevation difference, the network reaches every corner of mid-rise commercial structures.
ShieldBox IP55: Total Enclosure Strategy
A hermetically sealed electrical compartment keeps every circuit board isolated from ambient hazards—moisture, airborne salt, fine dust, driving rain, and insect intrusion are all rejected at the enclosure boundary. Refrigerant-cooled micro-channel heat sinks maintain semiconductor junction temperatures within optimal range, even when outdoor air exceeds 50°C. This protection philosophy has proven its value across desert installations, tropical coastal sites, and heavy-industrial zones.
META 2.0 Triple-Variable Logic + 60-Step Energy Scheduling
The control algorithm operates three optimization loops simultaneously—refrigerant flow, supply temperature, and indoor air volume—raising whole-building efficiency by 28% or more each year. Sixty incremental capacity steps (40-100%, adjustable in 1% increments) align output with real-time demand while keeping inrush current below circuit breaker thresholds. Standby consumption drops to just 3.5W, reducing off-hours electrical waste.
55°C Extreme Cooling + Full DC Architecture
Continuous rated cooling from -15°C through 55°C outdoor temperature—surpassing the 52°C T3 benchmark that most competitors treat as their upper limit. Every rotating element—compressor, outdoor fans, indoor fans—uses brushless DC motors with infinite speed modulation, matching load exactly and wasting nothing. Indoor units operate on a full-DC platform, converting up to 20% less electrical energy than equivalent AC motor designs.
SuperSense 17-Point Monitoring + Virtual Sensor Fallback
Seventeen distributed measurement points track pressure, temperature, refrigerant velocity, and compressor operating characteristics across the entire circuit. Should any physical sensor fail, the virtual sensor algorithm estimates the missing parameter from correlated data, maintaining uninterrupted operation. Combined with hardware redundancy at four levels—system, compressor, fan motor, and sensing—VC Max provides the uptime assurance that commercial occupants expect.

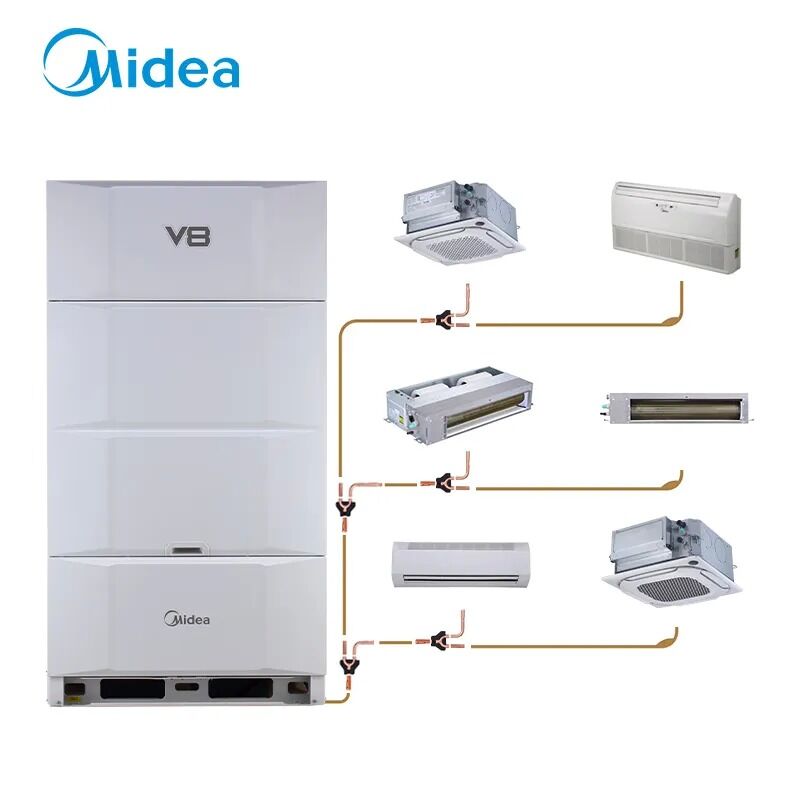

12 Indoor Unit Categories, 100+ Configurations
No other model in the V8 family matches VC Max's breadth of indoor equipment compatibility—12 form factors spanning ceiling cassettes, ducted units, wall-mounted, floor-standing, and combination types. Designers can specify the exact unit type for each space: high-ceiling lobbies, compact server rooms, open offices, hotel corridors, classrooms, and retail display areas. A single outdoor platform satisfies an entire building—streamlining procurement and maintenance.
Dual Voltage Platforms for Worldwide Electrification
Standard Version accepts 380-415V three-phase 50(60)Hz supply—covering Europe, Middle East, Africa, and most of Asia. Latin America Version accepts 220V three-phase 60Hz—engineered for the region's distinct power distribution infrastructure. In both cases, no external transformer is needed, eliminating a cost item and potential failure point.
Cooling-Only Architecture with Full Intelligence
Eliminating the heat pump cycle removes mechanical complexity—fewer valves, fewer piping joints, fewer potential leak paths—while retaining every digital advantage of the V8 ecosystem. Zone-by-zone temperature control, META 2.0 efficiency optimization, BMS connectivity via Modbus and BACnet, and Gold Fin condenser protection all remain standard. For facilities requiring cooling exclusively, VC Max delivers maximum value per dollar invested.
Application Scenarios & Regional Deployment
VC Max is deployed across office building VRF, hotel VRF solutions, school VRF systems, hospital VRF systems, and retail/commercial developments worldwide.
In the Middle East, SASO/ESMA/GCC approvals validate the system for Gulf deployment, while 55°C cooling capability and ShieldBox IP55 sand-seal protection serve the Arabian Peninsula's extreme climate.
Latin American projects benefit from the purpose-built 220V/60Hz configuration, eliminating voltage conversion and ensuring reliable tropical performance.
Southeast Asian installations leverage tropical monsoon ratings, Gold Fin coastal coating, and HyperLink's long-distance communication for large mixed-use complexes.
Across Africa and Europe, ShieldBox durability addresses diverse climate challenges, CE marking satisfies European conformity requirements, and the system aligns with LEED/BREEAM energy targets.
Certifications: CE • IP55 • SASO • ESMA • GCC Standard • UL Anti-Corrosion • LEED Ready • BREEAM Ready • TÜV SÜD • ISO 9001/14001/45001
Technical Specifications
| Capacity Range |
8-30 HP (single); 32-90 HP (combination) |
| System Type |
Top-discharge cooling-only VRF |
| Control System |
META 2.0 triple-variable intelligent control |
| Communication |
HyperLink any-topology, up to 2,000 m |
| Protection |
ShieldBox IP55 fully enclosed |
| Cooling Range |
-15°C to 55°C ambient |
| Max. Piping Length |
1,100 m |
| Max. Height Difference |
110 m |
| Energy Efficiency Gain |
28%+ annual improvement vs. conventional |
| Standby Power |
3.5W ultra-low |
| Sensors |
SuperSense 17 + virtual sensor backup |
| Redundancy |
Quadruple (unit, compressor, fan, sensor) |
| Indoor Units |
12 types, 100+ models |
| Power (Standard) |
380-415V/3Ph/50(60)Hz |
| Power (LATAM) |
220V/3Ph/60Hz |
Available Indoor Units
- One-Way Cassette
- Two-Way Cassette
- Compact Four-Way Cassette
- Four-Way Cassette
- Arc Duct
- Medium Static Duct
- High Static Duct
- Wall Mounted
- Floor Standing
- Ceiling & Floor
